CNC machining centers are currently widely used equipment in the parts processing industry. During the operation of high-precision machining centers, abnormal failures are inevitable due to factors such as long-term machine wear and harsh operating environments. So, how should users resolve issues when a high-end machining center malfunctions? Below, a professional machining center manufacturer provides a detailed introduction to common fault diagnosis methods.Measurement and Comparison Method for Common Faults in CNC Machining CentersThere are numerous test terminals on the circuit boards of CNC systems in machining centers. These terminals are provided for maintenance personnel to perform inspections. Once a fault occurs, relevant terminals can be measured.

1The contact of the origin limit switch is stuck and fails to operate;2The origin dog cannot press the origin switch to its actuating position;3Water ingress into the origin switch causes rust on the contacts and poor electrical contact;4Open circuit in the origin switch wiring or failure of the input signal source;5Burned-out PLC input point.Countermeasures: Clean the stuck parts to ensure smooth movement of movable components, or replace the travel switch; adjust the mounting position of the travel switch so that the origin switch contact can be smoothly pressed to the actuating position by the dog; replace the travel switch and take effective waterproof measures; check the switch circuit for open circuit or short circuit and verify the signal source.

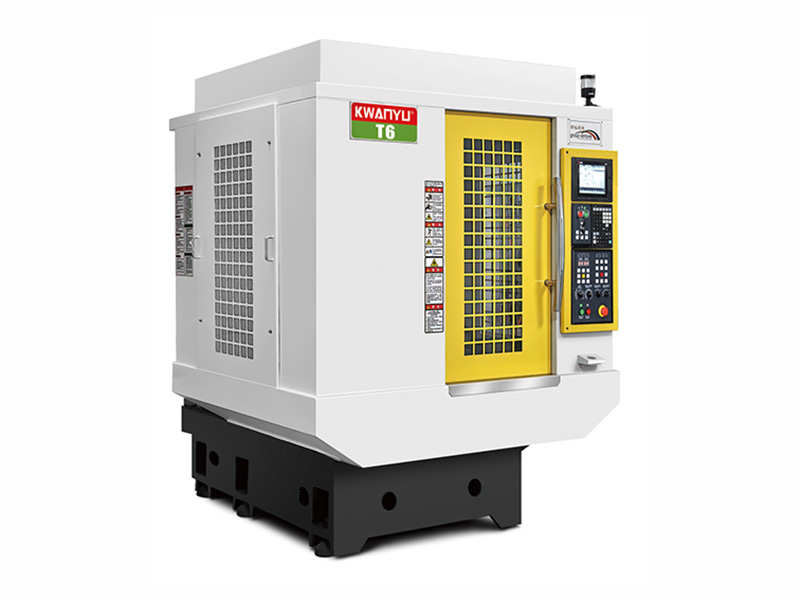

Under normal circumstances, manufacturers that produce machining centers will also produce drilling and tapping centers, but manufacturers that specialize only in drilling and tapping centers do not necessarily produce othertypesfmachiningcenters.Essentially, the drilling and tapping center is a type of vertical machining center, as it is derived from the vertical machining center.Today, Taicheng CNC will take you to understand the similarities and differences between the two.A machining center refers to a high-efficiency automated machine tool composed of mechanical equipment and a CNC system, used for processing complex-shaped workpieces. I believe everyone is quite familiar with this, so no further elaboration will be given here. "Drilling
